DCRA 7.62 Conversion Range Report

 Post Reply Post Reply Page  12>
Author
Message
britrifles View Drop Down
Senior Member
Senior Member
Avatar

Joined: February 03 2018
Location: Atlanta, GA
Status: Offline
Points: 2768
Post Options Post Options   Thanks (0) Thanks(0)   Quote britrifles Quote  Post ReplyReply Direct Link To This Post Topic: DCRA 7.62 Conversion Range Report
    Posted: August 03 2019 at 2:50pm
A few weeks back I loaded up some 7.62 NATO “Mexican Match” to test out my theory on why the No. 4 7.62 conversions did not shoot well.  My theory was wrong.  But I did discover something that I’ve not heard before as a possible cause or contributor.

Here are the Loads:

1. Canadian Dominion Arsenal (DA) 1959 Ball (147 Hard Point Boat Tail) military Service issue

2.  DA ‘59 above, with 150 gr SMK subbed for the 147 gr ball projectile.

3.  DA ‘59 case, CCI #200 Primer, 42.0 gr Varget, pulled 147 gr DA ‘59 ball projectile from 2 above.

4.  DA ‘62 case, WLR primer, 40.0 gr Varget, 168 gr SMK as a control (proven match load).

I expected load 2 would be best of loads 1 thru 3.    It was not.

2 x 10 shot groups of each load off the bench at 200 yards, PH 5C aperture sight.  This is a UF56 Mk 2 action with CA 7.62 barrel, mid-band barrel bedded.




Here are the targets.  Note there was some sight adjustments between groups as noted.

Load #1 DA 59 Service Ball, Group 1 - 2.6 MOA extreme spread, not bad for service ammo.



Load # 1 DA 59 Service Ball, Group 2 - 6.0 MOA extreme spread, terrible.  No idea why second group was so bad.

Moved rear sight 1 MOA left before shooting this group.



Load # 2 150 gr SMK subbed in for Service bullet, Group 1 - 2.8 MOA, Fair result, expected better




Load #2 150 gr SMK subbed in for Service Bullet, Group 2 - 5.1 MOA, terrible, expected way better.




Load #3 42.0 gr Varget, 147 gr Pulled Service Bullet, Group 1 - 2.0 MOA much better than expected

Note the shift in MPI, about +4 MOA from previous loads which all has the original factory powder charge.



Load #3 42.0 gr Varget, 147 gr Pulled Service Bullet, Group 2 - 2.1 MOA much better than expected.

Adjusted rear sight 3 MOA down and 1 MOA left before shooting this group.



Load #4 40.0 gr Varget, 168 gr SMK Match Load Control Group.

Note the 2 shots that were just outside the X ring (10.9) 1.7 MOA Extreme Spread.  The group was 1.5 MOA for the first 9 shots.



Conclusions:

Poor accuracy of 7.62 Service Ball Ammo was not related to bullet quality.  The two 10 shot groups with pulled bullets loaded with 42 gr Varget grouped at approx 2 MOA extreme spread.  150 gr Match bullets loaded in place of the pulled bullet did only slightly better.

When loading up these cartridges, I weighed the powder charges of 20 rounds and was surprised it ranged from 40 to 43 grains.  The powder appeared similar in stick size to IMR 4895.  I returned the individual charges back into the case they were dumped from, so load #2 with the 150 gr SMK evaluated the as charged service ammo with a modern match bullet.

Variations in powder charge weights most likely was the cause of poor accuracy.  I suspect the service ammunition may be loaded to a higher velocity than Load #3 (42 gr Varget), and the higher velocities/pressures may be flexing the action more than the .303 and giving erratic groups.

I intend on doing two more tests:

1. Pull service bullets, dump powder into powder measure, recharge cases with 40.0 gr of service powder, reseat pulled service bullet.

2. 42.0 gr Varget with 150 gr SMK.








Back to Top
Sponsored Links


Back to Top
britrifles View Drop Down
Senior Member
Senior Member
Avatar

Joined: February 03 2018
Location: Atlanta, GA
Status: Offline
Points: 2768
Post Options Post Options   Thanks (0) Thanks(0)   Quote britrifles Quote  Post ReplyReply Direct Link To This Post Posted: January 11 2021 at 4:59am
I may have posted this before, but likely lost in the “Enfield Rifles” forum.  I shot this target last year, prone in sling, no support, PH 5C aperture sight.  UF56 No. 4 Mk 2 DCRA (Canadian Arsenal Ltd, Long Branch 7.62 service weight barrel).

Load:

Dominion Arsenal (DA) 1962 7.62 NATO Case Neck Sized
WLR Primer
40.0 gr Varget
168 gr Sierra MatchKing
2.80 inch OAL

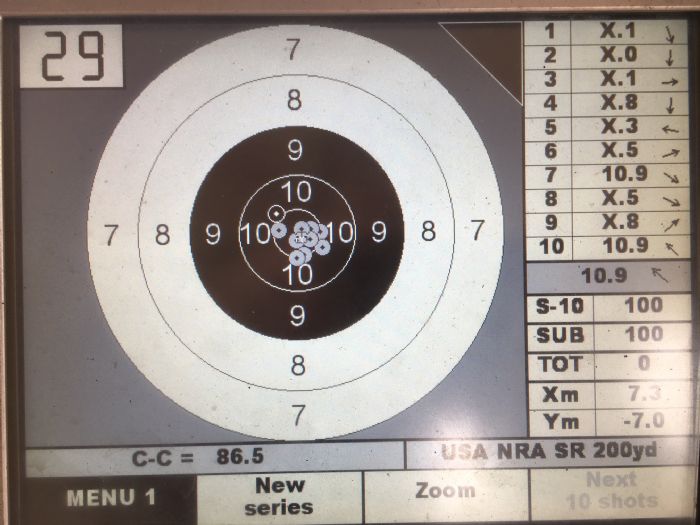

200 Yards on NRA SR Target.  Score is 100-8x.  This is the most accurate Lee Enfield I have.



Back to Top
Canuck View Drop Down
Special Member
Special Member
Avatar
Donating Member

Joined: January 17 2012
Location: Agassiz BC
Status: Offline
Points: 3083
Post Options Post Options   Thanks (0) Thanks(0)   Quote Canuck Quote  Post ReplyReply Direct Link To This Post Posted: January 11 2021 at 6:52am
Very impressive! Thanks for sharing your results.
Castles made of sand slip into the sea.....eventually
Back to Top
Sgtrick View Drop Down
Newbie
Newbie


Joined: April 28 2020
Location: Saskatoon Sask.
Status: Offline
Points: 19
Post Options Post Options   Thanks (0) Thanks(0)   Quote Sgtrick Quote  Post ReplyReply Direct Link To This Post Posted: January 11 2021 at 8:57am
Very nice target. Well done.
Im just starting to work with my 7.62 longbranch, conversion number 54. I have a bunch of 1961 DA ball ammo that I want to try but am really interested in shooting powder coated cast bullets.
Thanks for sharing this.
Back to Top
britrifles View Drop Down
Senior Member
Senior Member
Avatar

Joined: February 03 2018
Location: Atlanta, GA
Status: Offline
Points: 2768
Post Options Post Options   Thanks (0) Thanks(0)   Quote britrifles Quote  Post ReplyReply Direct Link To This Post Posted: January 12 2021 at 4:54am
Sgtrick, i have DA 59, 60 and 62 ball ammo.   I don’t think I have any 61.  I’ve shot a few hundred rounds of this ammo, accuracy is 3 to 4 MOA, sometimes a bit better.

I ran a test a few years back where I pulled the bullets on 40 rounds and re-metered the powder charge. These were all from the same lot of DA ‘60 ball ammo.  I found that there was a vary large variation in the powder charge weight (as much as 2 grains) which was causing vertical stringing of the groups.  With a consistent powder charge (+/- 0.1 gr), the groups tightened right up.  I had first suspected poor quality bullets, but that was not the reason for the mediocre accuracy of the service ammo.  I posted the results of this test on the Enfield Rifles or Reloading forum (can’t remember which).  I’ll see if I can find that post and ask our administrator to move it over to the 7.62 Enfield forum.

I’ve not tried cast bullets yet in any of my Enfields.  What is very appealing with shooting cast is that it is very easy on the action and barrel.  The much lower pressures and much less erosion of the throat and wear of the bore.  I suspect the barrel life with shooting cast is in the tens of thousands of rounds.


Back to Top
Pukka Bundook View Drop Down
Senior Member
Senior Member
Avatar

Joined: February 02 2015
Location: Canada
Status: Offline
Points: 1356
Post Options Post Options   Thanks (0) Thanks(0)   Quote Pukka Bundook Quote  Post ReplyReply Direct Link To This Post Posted: January 12 2021 at 5:26am
Very good info to have on those powder variations Geoff.
I would not have expected such a wide spread!

That is a Very pretty target!

BTW,
I haven't noticed Englishman.ca posting;
Is he OK do you blokes know?
Maybe I just missed seeing his posts...
Back to Top
Shamu View Drop Down
Admin Group
Admin Group
Avatar
Logo Designer / Donating Member

Joined: April 25 2007
Location: MD, USA.
Status: Offline
Points: 13274
Post Options Post Options   Thanks (0) Thanks(0)   Quote Shamu Quote  Post ReplyReply Direct Link To This Post Posted: January 12 2021 at 6:30am
He's not listed as being logged on since August of last year!
Does anyone have a  direct contact with him?
Don't shoot till you see the whites of their thighs. (Unofficial motto of the Royal Air Force)
Back to Top
Pukka Bundook View Drop Down
Senior Member
Senior Member
Avatar

Joined: February 02 2015
Location: Canada
Status: Offline
Points: 1356
Post Options Post Options   Thanks (0) Thanks(0)   Quote Pukka Bundook Quote  Post ReplyReply Direct Link To This Post Posted: January 12 2021 at 7:29am
Just sent him an email, Sham.
Back to Top
Shamu View Drop Down
Admin Group
Admin Group
Avatar
Logo Designer / Donating Member

Joined: April 25 2007
Location: MD, USA.
Status: Offline
Points: 13274
Post Options Post Options   Thanks (0) Thanks(0)   Quote Shamu Quote  Post ReplyReply Direct Link To This Post Posted: January 12 2021 at 8:29am
Thanks.
Don't shoot till you see the whites of their thighs. (Unofficial motto of the Royal Air Force)
Back to Top
Sgtrick View Drop Down
Newbie
Newbie


Joined: April 28 2020
Location: Saskatoon Sask.
Status: Offline
Points: 19
Post Options Post Options   Thanks (0) Thanks(0)   Quote Sgtrick Quote  Post ReplyReply Direct Link To This Post Posted: January 12 2021 at 9:50am
Britrifles. I pulled the bullets on a couple of 1961 DA rnds to what powder was used. The charge was about 42 gns of what appears to be 4895. I plan on loading some 4895 loads and crono them and compare with the military loads. I might do what you did and pull bunch and weight the charges.
Been shooting powder coated bullets in my 303s for a few years now for the reasons you mentioned. Easier on these fine old rifles.
Back to Top
britrifles View Drop Down
Senior Member
Senior Member
Avatar

Joined: February 03 2018
Location: Atlanta, GA
Status: Offline
Points: 2768
Post Options Post Options   Thanks (0) Thanks(0)   Quote britrifles Quote  Post ReplyReply Direct Link To This Post Posted: January 12 2021 at 1:05pm
Thanks Richard.  I totally pulled that last shot off to the left, I knew I had done that when the shot broke.  Kinda ruined the target.  I was proud of how tight the elevation spread was (1/2 MOA), the barrel just sings with this load.

One of these days, I’m going to go into serious prone shooting mode with the DCRA conversion and see if I can break the 100-10x barrier that seems to have eluded me so far.  I’ve done it off the bench, but to me, that “doesn’t count”.

I hope Englishman is OK.  We have not heard from him in a while.
Back to Top
A square 10 View Drop Down
Special Member
Special Member

Donating Member

Joined: December 12 2006
Location: MN , USA
Status: Offline
Points: 11448
Post Options Post Options   Thanks (0) Thanks(0)   Quote A square 10 Quote  Post ReplyReply Direct Link To This Post Posted: January 12 2021 at 7:27pm
me too , i had not realized how long it has been , hate when this happens
Back to Top
Pukka Bundook View Drop Down
Senior Member
Senior Member
Avatar

Joined: February 02 2015
Location: Canada
Status: Offline
Points: 1356
Post Options Post Options   Thanks (0) Thanks(0)   Quote Pukka Bundook Quote  Post ReplyReply Direct Link To This Post Posted: January 12 2021 at 9:42pm
Gents,

My email to Simon, (Englishman) came back undeliverable.
Must be a year since we wrote...  Maybe he has changed his email?
Anyone have a newer one for him?
Back to Top
Goosic View Drop Down
Senior Member
Senior Member
Avatar

Joined: September 12 2017
Location: Phoenix Arizona
Status: Offline
Points: 5179
Post Options Post Options   Thanks (0) Thanks(0)   Quote Goosic Quote  Post ReplyReply Direct Link To This Post Posted: January 13 2021 at 2:13am
His eBay account says that he is no longer a registered user. If anyone has his physical address including any pertinent information that may go with it, would you be kind enough to PM me?
Back to Top
Shamu View Drop Down
Admin Group
Admin Group
Avatar
Logo Designer / Donating Member

Joined: April 25 2007
Location: MD, USA.
Status: Offline
Points: 13274
Post Options Post Options   Thanks (0) Thanks(0)   Quote Shamu Quote  Post ReplyReply Direct Link To This Post Posted: January 13 2021 at 6:58am
Sorry, no. All my contacts are through the forum here.
I have access to an IP checker & his "box" still seems to be active at the same location as when he registered.
Don't shoot till you see the whites of their thighs. (Unofficial motto of the Royal Air Force)
Back to Top
A square 10 View Drop Down
Special Member
Special Member

Donating Member

Joined: December 12 2006
Location: MN , USA
Status: Offline
Points: 11448
Post Options Post Options   Thanks (0) Thanks(0)   Quote A square 10 Quote  Post ReplyReply Direct Link To This Post Posted: January 13 2021 at 10:11am
Originally posted by Pukka Bundook Pukka Bundook wrote:

Gents,

My email to Simon, (Englishman) came back undeliverable.
Must be a year since we wrote...  Maybe he has changed his email?
Anyone have a newer one for him?

this happened to me back about 15 years ago - i knew him in a previous life , pre- this enfield site , might be having issues with his computer/service , hopefully we will regain contact ,
Back to Top
